Laser marking machines and examples marks
Columbia Marking Tools has performed two methods of sample; the samples were done on CMT’s IMIS60 Scribe programmable and a 50 watt Fiber laser. You will see three samples from each application with various settings. The marks you will receive are not your exact readings, but are examples of what Read more…
LE16 Drawer Style The enclosure will be Class 1 certified by the Center for Devices and Radiological Health (CDRH) Standard Features *Light Tight Enclosure *Large Viewable Safety Glass *Variable Height Adjustment *Laser Status Light *Mounted on Isolation Feet *Inside Work Light *Drawer Door with integrated safety lock Read more…
LE24 Standard Features The enclosure will be Class 1 certified by the Center for Devices and Radiological Health (CDRH) The enclosure will a light tight bench-top model incorporating the following features: o Large Viewable Safety Glass o Variable Height Adjustment o Laser Status Light o Mounted on Read more…
LE16 – AD Auto-Door Upgrade – Auto-Open/Close Door Machine to automatically close and open drawer after completion of successful marking cycle. Includes upgrade to cycle start with e-stop LE16 Drawer Style The enclosure will be Class 1 certified by the Center for Devices and Radiological Health (CDRH) Standard Features *Light Read more…
Laser Sample mark #1 20Watt % power: 35 # of passes: 2 Step size: 40 Mark Type: Raster Cycle time: 84 Sec Laser Sample mark #2 20Watt % power: 35 # of passes: 1 Step size: 40 Mark Type: Raster Cycle time: 29 Sec Laser Sample mark #3 20Watt Read more…
Part:Piston Aluminum Part Material: aluminum Character size: 1/8″ Number of characters: 3 Note: one of information Machine used: Laser Cycle time:3 Seconds For more on the marking system used please see:http://columbiamt.com/CMT-Dot-Peen-Scribe/EcoMark_Laser_Marking_Machine_2.html#210
Automated Linear Stage For Laser Marking * To accomodate 18″ long X 8″ wide part .062″ Thick * System to index up to 18″ in 4″ increments * System to include cycle start button to initiate cycle which will index part and provide output to laser for marking every 4″ Read more…
coMark 15 Watt YVO4 Yag Marking unit including:
Industrial Laser Controller including:
* Diode-pumped Power Source (Fiber coupled to marking head)
* TE Cooling System
* 19″ Rack Mount Controller
* Input Power: 100-240VAC, 50/60Hz
Industrial Laser Marking Head including:
* High-speed/ precision Galvanometer Beam Control
* 163mm F-Theta Focusing Lens for a 100 mm x 100 mm marking area
* Nd: YVO4 Crystal (fiber optic coupled)
* Diode-pumped Laser Source
* 1064 nm wavelength
* Q-switched Operation
* CDRH Cass IV Level of Manufacture
CMT Custom Marking Software (SymbolWriter Pro) featuring:
* True Type Fonts
* Single Stroke Fonts
* Elliptical Text
* Sequential Serial Numbers
* Customizable Auto-Dating
* Barcodes
* 2D Codes Including: Data Matrix, MaxiCode, QR-Codes and PDF417
* Raster Graphics
* Vector Graphics
* Easy to Use Automation Interface

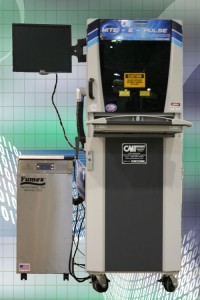

Laser Marking machine structure & enclosure including:
* Small stand-alone industrial enclosure (24″ wide x 30″ deep x 68″ tall)
o Class 1 safety enclosure with front door interrupt switch
* Integrated PC controller with 15″ monitor, keyboard, mouse & laser software preloaded
* Marker head assembly with Z axis manual height adjustment
* 8″ x 8″ work table with space for 10″ x 14″ parts
o Fixture plate with T-Slots for easy fixture mounting
o 4″ diameter marking window (pending lens selection)
* Exterior side mount hardware for 15″ flat screen with keyboard & mouse tray
* Exterior mounted main power switch
* Work light
* All components fully integrated and tested (more…)
MARKING TOOLS INTRODUCES NEW 10 AND 20 WATT COLUMBIA PULSED FIBER DIODE LASERS SPECIFICALLY DESIGNED FOR MARKING Pulsed fiber lasers have become the preferred laser technology for identification and traceability marks for metals and plastics when their application has been determined to be either the most cost-effective, produce marks Read more…
