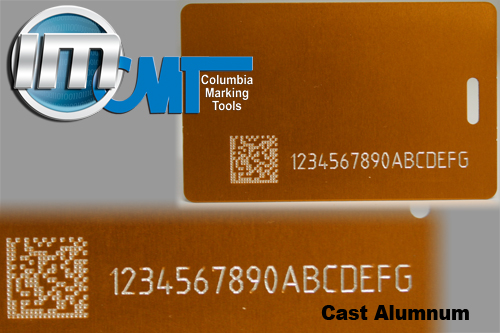

Alumnum Plate
Part:Cast Alumnum Plate
Material: Alumnum
Character size: 3/16″
Number of characters: 17 and 2D Code julian date code
Note:One lines of information
Machine used: IM-IS60 Air scribe
Cycle time: 35 sec
For more on the marking system used please see: http://columbiamt.com/CMT-Dot-Peen-Scribe
The I-Mark I series “Quiet” Scribe is the single most popular programmable system sold by Columbia Marking Tools. The solid build of this unit, combined with the Ballscrew drives makes industrial 24/7 high volume marking easy.
The I-Mark line uses the latest technology to expand the process of marking. The I-Mark controller can be configured for up to 6 axis and a wide range of tooling. Plus the standard marking head can mark BOTH dot-peen and scribe in the same marking legend
Columbia Marking Tools' patented Square ◙ Dot® scribe marking enables encoding data, such as 2D Matrix codes, onto hard materials at very high speed with Grade “A” readability, the highest standard rating, equivalent to 1,200 reads per second with no variations.
