Air Impact Press to mark Gear Housing

Project scope:  CMT to provide a stand alone Impact Marking Machine complete with part fixture stamp holder and stamps to mark gear housing parts. Material is cast iron, marking legend is (6) 3/16″ character part number. Customer provided part drawing shows location of the mark. Marking time is estimated at 2 seconds. Part loading / unloading is manual.

Front View of PR751 Impact Marking Machine

Side View of PR751 Impact Marking Machine

PR751-OK-40-00 Columbia Model PR751 Bench Style Two-stage Slide-A-Mark Air press including:
a) Air approach “Pre-Load” and follow through impact action
b) Keyed non-rotating ram
c) Slide-A-Mark 751-OK-40-00 with K style rod to mount tooling and 4″ ram stroke
d) All necessary air control valves
e) Air inline filter, pressure regulator, pressure guage, and lubricator
f) OSHA approved air shutoff valve with lockout and quick exhaust feature
g) Fixture mounting pad
h) Heavy duty bench style machine frame
i) Dual anti-tie down, anti-repeat palm buttons
j) Complete air piloted control system
k) Painted machine enamel blue

For more information: http://columbiamt.com/CMT-Press-Roll-Marking/Slide-A-Mark-Press.html

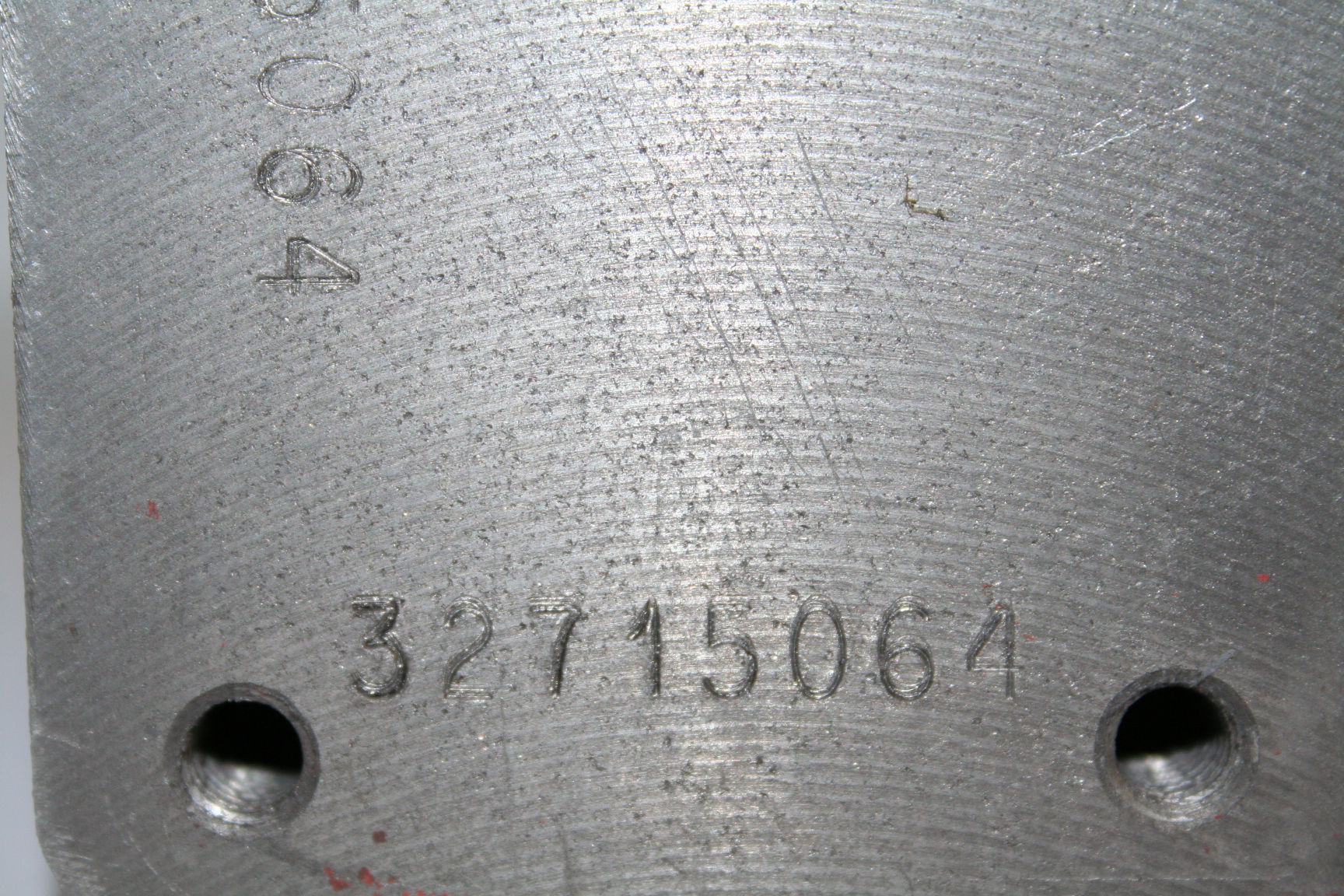

Gear Housing with Air Impact mark

(8) 3/16″ characters at 60 psi.
